All necessary bolts and nuts for this fitting are included.

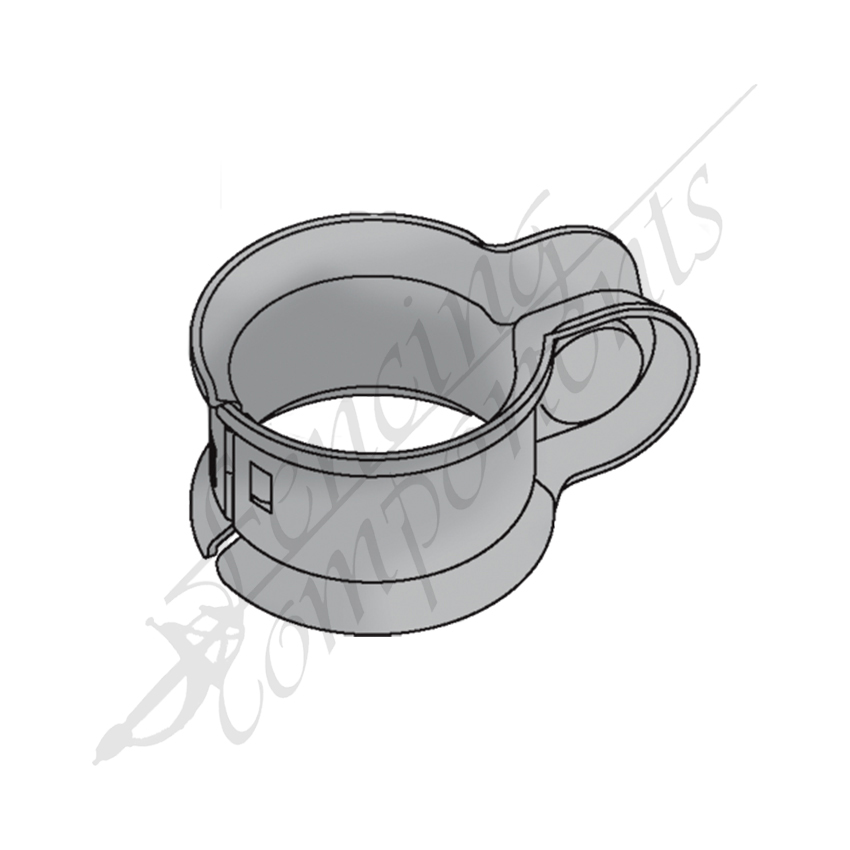

Versatile Fence Fitting System – Secure, Adjustable & Easy to Install
Upgrade your chainwire diamond mesh fencing with our Versatile Fence Fitting System, designed for seamless rail connections at any angle. Whether you're assembling horizontal, vertical, or angled sections, this innovative system ensures a strong, secure connection every time.
Key Features:
✔ Multi-Directional Compatibility – Connect round pipe rails horizontally, vertically, or at an angle with ease.
✔ Durable & Reliable – Crafted from high-quality galvanised steel to withstand harsh outdoor conditions.
✔ Easy Installation – Supplied with bolts for quick assembly, reducing setup time.
✔ Universal Fit – Ideal for commercial, industrial, and residential chainwire fencing projects.
✔ Maximum Versatility – Adjust connections effortlessly, making it perfect for custom fence layouts.
How It Works:

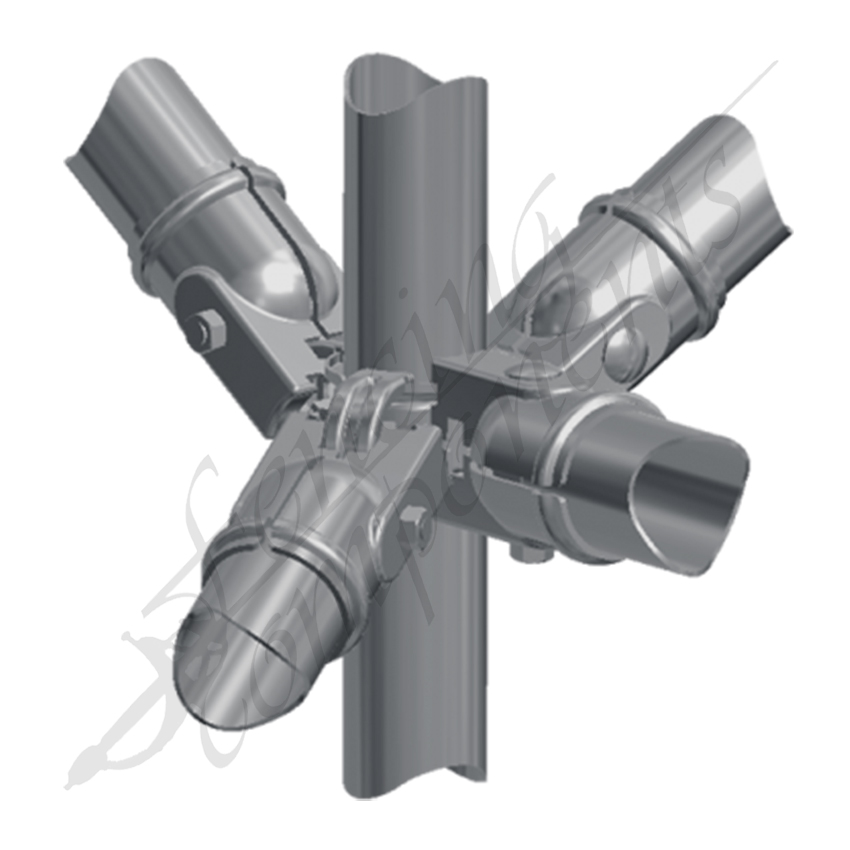

The Versatile Fence Fitting System acts as a flexible junction, allowing round pipe rails to be securely joined in various configurations. Simply position the fitting, insert the provided bolts, and tighten for a sturdy, long-lasting connection. Its adaptability makes it an excellent choice for complex fencing layouts where standard fittings fall short.
_______________
Disclaimer: All sizes listed for Chainwire, Round Pipe Fittings, and Pipes are in Nominal Bore (NB). Nominal Bore refers to the approximate internal diameter, which differs from the actual Outer Diameter (OD) measured in millimeters. Refer to the conversion table below for clarification.
| Nominal Bore (NB) | Outer Diameter (OD) mm |
|---|---|
| 15 NB (½") | 21.3 mm |
| 20 NB (¾") | 26.9 mm |
| 25 NB (1") | 33.7 mm |
| 32 NB (1¼") | 42.4 mm |
| 40 NB (1½") | 48.3 mm |
| 50 NB (2") | 60.3 mm |
| 65 NB (2½") | 76.1 mm |
| 80 NB (3") | 88.9 mm |
| 100 NB (4") | 114.3 mm |
| 125 NB (5") | 141.3 mm |
| 150 NB (6") | 168.3 mm |
| 200 NB (8") | 219.1 mm |
| 250 NB (10") | 273.0 mm |
| 300 NB (12") | 323.9 mm |
