All necessary bolts and nuts for this fitting are included.

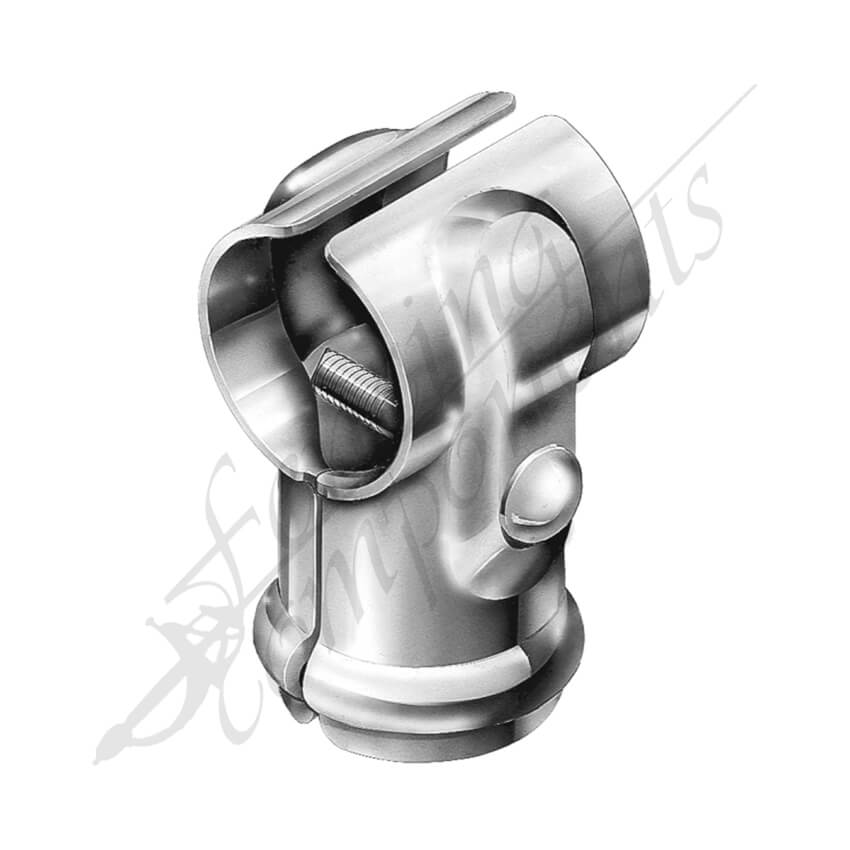

Chainwire T-Joint Fitting – Galvanized Steel Connector for Horizontal Rails
The Chainwire T-Joint Fitting is a crucial component in chainwire fencing systems. Designed for structural reinforcement and load distribution, this fitting ensures optimum fence stability in high-security, industrial, and commercial applications.
Application & Installation:

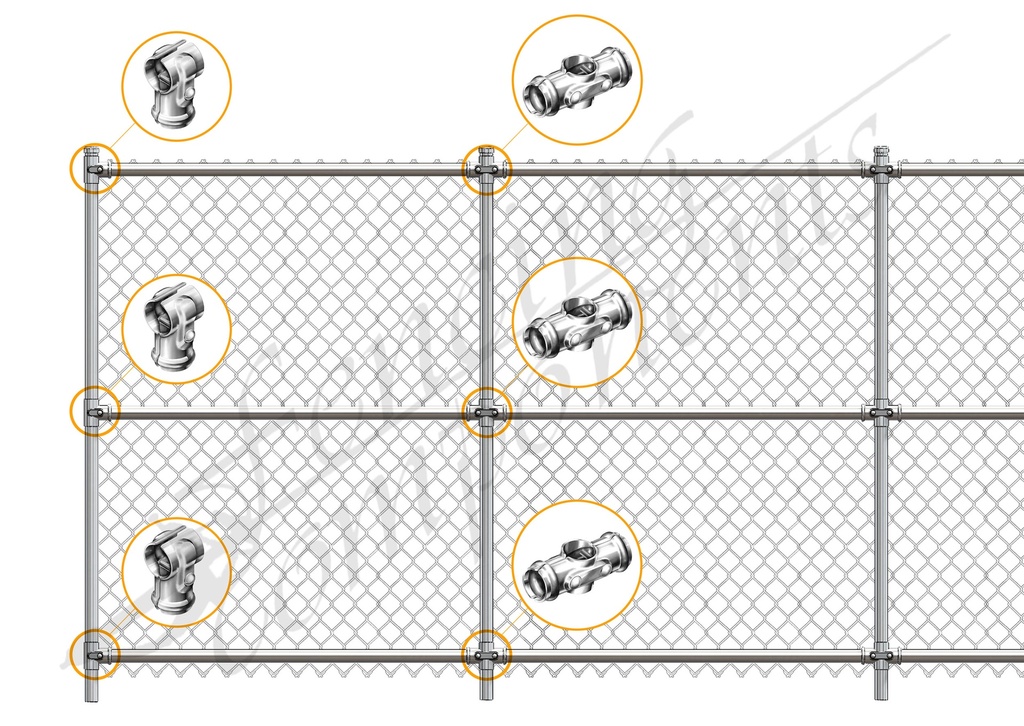

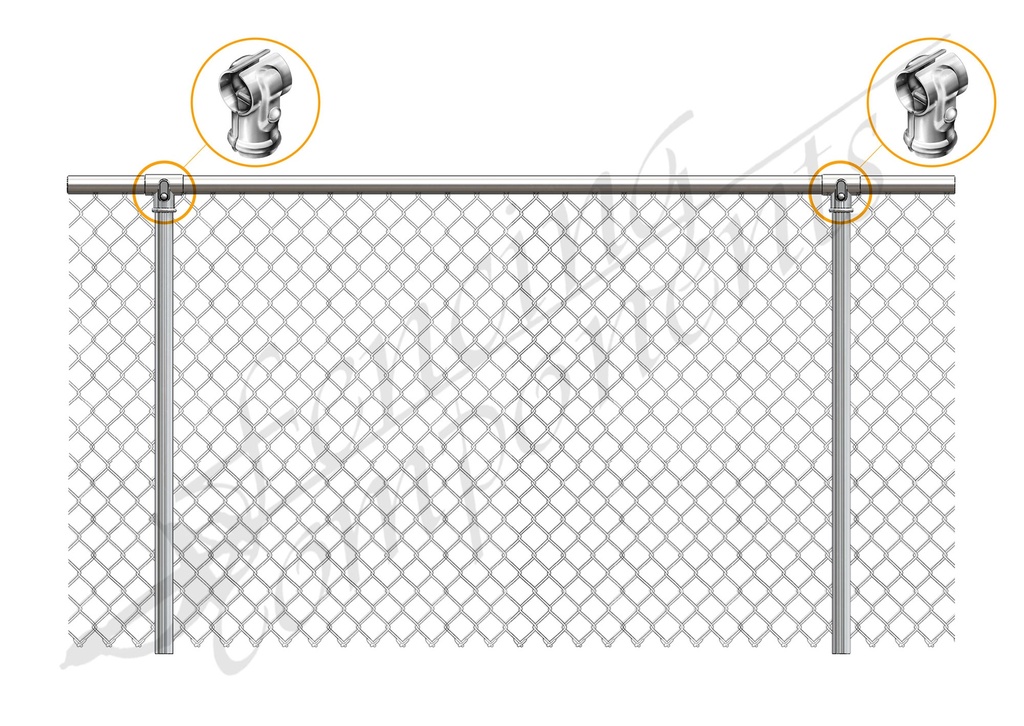

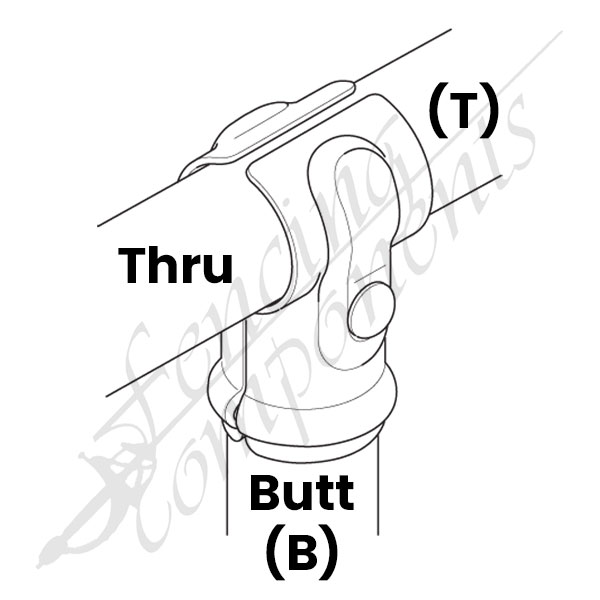

The T-Joint Fitting is installed at the top of intermediate and corner posts to facilitate the attachment of horizontal support rails. This fitting provides a firm, right-angle connection, preventing rail displacement and reinforcing the overall fence structure.
_______________
Disclaimer: All sizes listed for Chainwire, Round Pipe Fittings, and Pipes are in Nominal Bore (NB). Nominal Bore refers to the approximate internal diameter, which differs from the actual Outer Diameter (OD) measured in millimeters. Refer to the conversion table below for clarification.
| Nominal Bore (NB) | Outer Diameter (OD) mm |
|---|---|
| 15 NB (½") | 21.3 mm |
| 20 NB (¾") | 26.9 mm |
| 25 NB (1") | 33.7 mm |
| 32 NB (1¼") | 42.4 mm |
| 40 NB (1½") | 48.3 mm |
| 50 NB (2") | 60.3 mm |
| 65 NB (2½") | 76.1 mm |
| 80 NB (3") | 88.9 mm |
| 100 NB (4") | 114.3 mm |
| 125 NB (5") | 141.3 mm |
| 150 NB (6") | 168.3 mm |
| 200 NB (8") | 219.1 mm |
| 250 NB (10") | 273.0 mm |
| 300 NB (12") | 323.9 mm |
