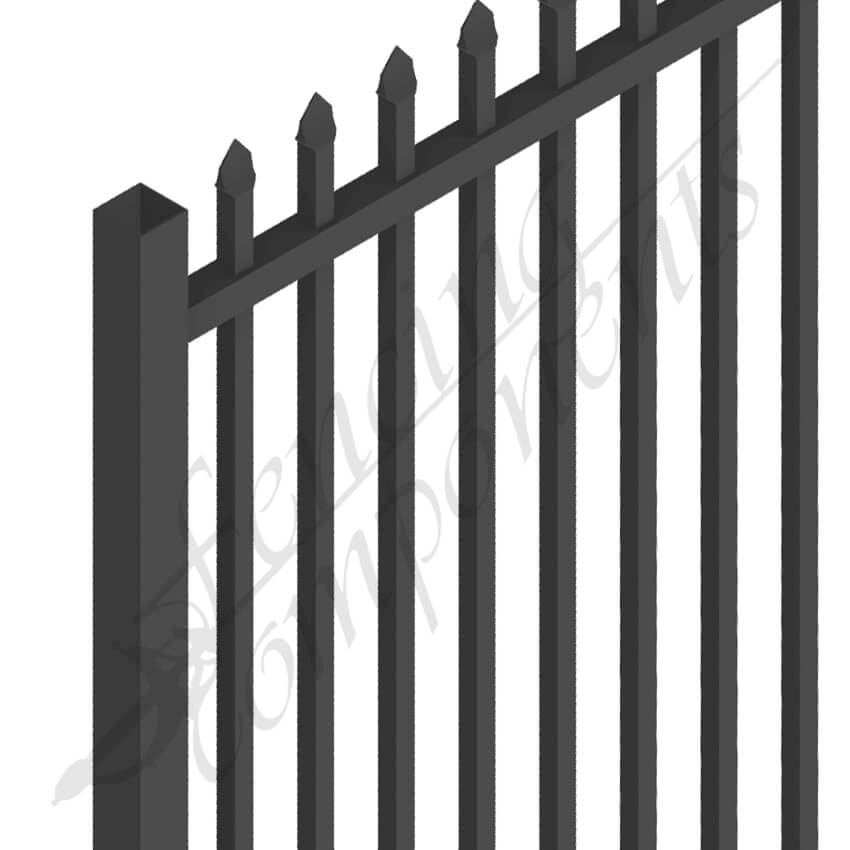

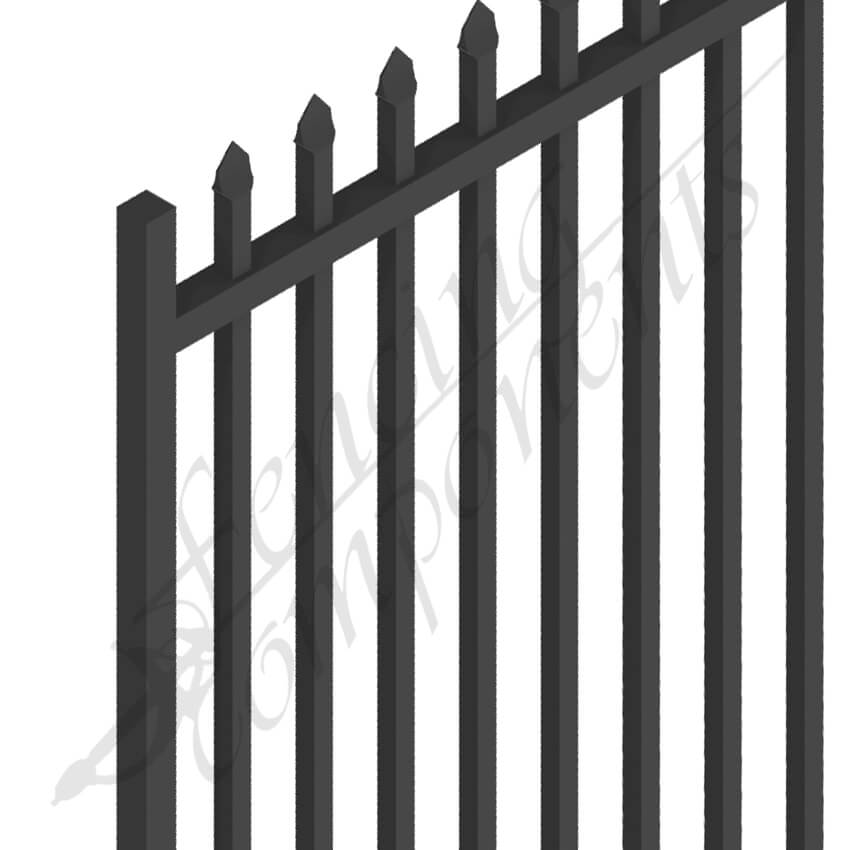

Steel Security Crimp Top Swing Gates
Fencing Components’ Steel Security Crimp Top Swing Gates are built for schools, commercial properties, and high-security applications, offering exceptional strength, durability, and compliance with Australian Standards.
Premium-Quality Steel Construction
Manufactured from graded steel with a 100g/m² galvanising zinc coating, these gates are treated with Henkel’s Bonderite MNT 20163 multi-metal ceramic treatment to provide superior corrosion resistance, wear protection, and adhesion. The double fillet picket weld with silicon bronze ensures superior strength.
Deep dive into our product pre-treatment, quality assurance and what makes us the top choice.
Specifications:
✔ Material: Pre-galvanised, Dura-Coat Primer, AkzoNobel Treatment & Powder-Coated Satin Black
✔ Gap/Centre Distance: 90mm / 115mm (Excludes XLT models)
✔ Frame:
XLT Models: 40x40mm (1.6mm thick) side stiles
Standard Heavy Models: 65x65mm (2.0mm thick) with double bottom rail

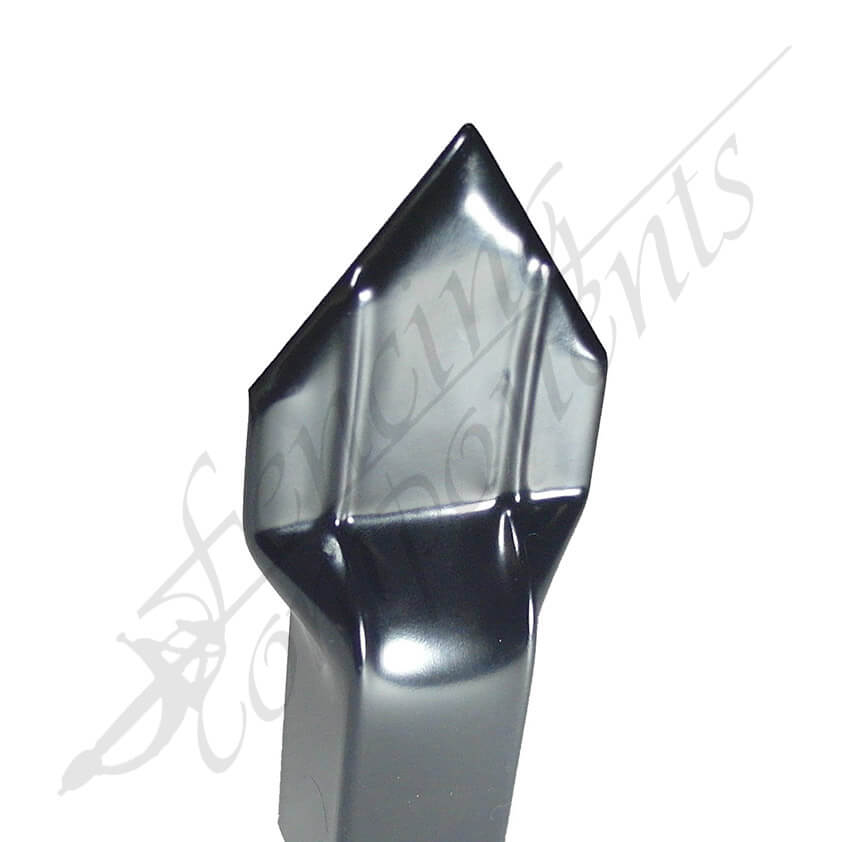

✔ Verticals: 25x25mm (1.2mm thick) – protruding 150mm through the top rail

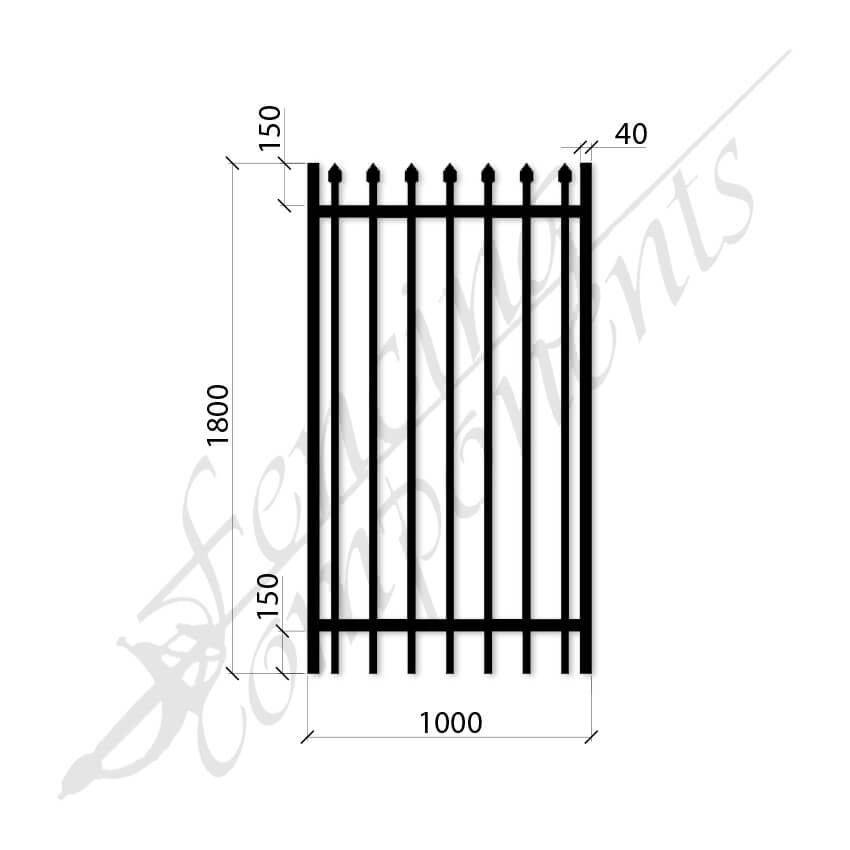

✔ Available Sizes & Weights:
- 1.8m Height Options:
- 1.0m Width: ±20kg
- 1.2m Width: ±35kg
- 2.085m Width: ±56kg
- 2.1m Height Options:
- 1.0m Width: ±32kg
- 1.2m Width: ±39kg
- 1.485m Width: ±45kg
- 1.8m Width: ±56kg
- 2.085m Width: ±62kg
Why Choose Fencing Components?
- School Specification Approved (Excludes XLT models)
- Certified to Australian Standards for superior strength and durability
- 10-Year Manufacturer’s Registered Warranty (Conditions Apply)
- Comprehensive technical drawings available for project specifications
- Individually tough-packaged gates to prevent transit damage
