Ditec NeoS Green 500 Heavy Duty Sliding Gate Motor Kit - 500KG / 12m
Ditec NEOS 500 G Sliding Gate Motor
Heavy-Duty 24V Automation for Sliding Gates up to 500kg

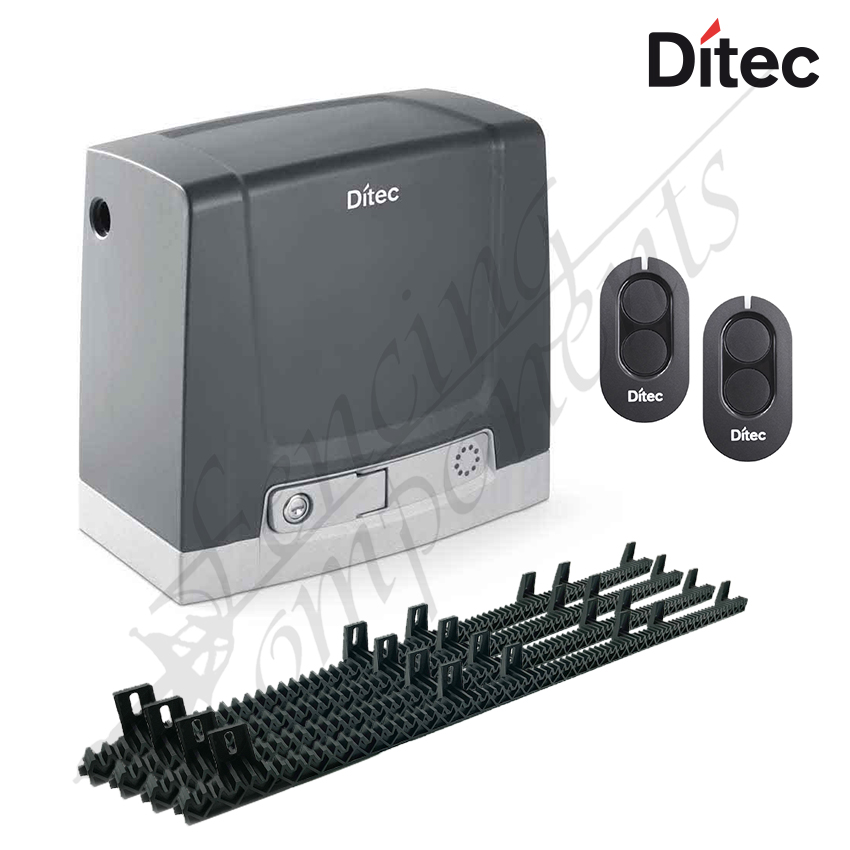

Includes :
1x NeoS 500 Ditec Heavy Duty Sliding Gate Motor
4x 1m Ditec Gear Rack
2x Ditec 2 Button Remote Transmitters (Pre-Programmed)
The Ditec NEOS 500 G is a professional-grade 24V sliding gate motor designed for residential and light commercial applications where smooth operation, advanced safety, and long-term reliability are essential. Engineered by ASSA ABLOY, this system combines energy-efficient performance, intelligent obstacle detection, and installer-friendly setup in a compact, durable housing.
Built to handle sliding gates up to 500kg and 20 metres in length, the NEOS 500 G is ideal for driveways, small commercial sites, and high-quality residential installations that demand secure, quiet, and dependable automation.
Why Choose the Ditec NEOS 500 G?
Powerful Yet Efficient
- Designed for gates up to 500kg
- Smooth operation with adjustable speeds up to 0.25 m/s
- Heavy-duty design tested for 150,000+ cycles
Advanced Safety System
- 24V Virtual Encoder Technology for real-time force monitoring
- Automatically stops or reverses when an obstacle is detected
- Compatible with safety edges, photocells, and emergency stop inputs
Ultra-Low Energy Consumption
- < 0.5W standby power with active display
- Solar and battery backup compatible
- Complies with modern European energy efficiency regulations
Installer & Trade Friendly
- Built-in control panel with display and push-button navigation
- Factory pre-wired internal cabling
- Height-adjustable base plate for perfect rack alignment
- Removable memory module for copying settings between units
Secure Access Control
- AES-128 encrypted radio system
- Dual-frequency receiver (433.92 MHz & 868.35 MHz)
- Protected Mode prevents cloned remote access
Data Sheet
Specifications
| Feature | Specification |
|---|---|
| Max Gate Weight | 500 kg |
| Max Gate Length | 20 m |
| Motor Type | 24V DC Electromechanical |
| Power Supply | 230V AC |
| Thrust | 500 N |
| Speed Range | 0.10 – 0.25 m/s |
| Duty Cycle | Heavy duty – up to 150,000 cycles |
| Cycles Per Hour | 26 (at 25°C, 6m gate) |
| Standby Power | < 0.5W (active display) |
| Protection Rating | IP24D |
| Operating Temperature | -20°C to +55°C (down to -35°C with NIO mode) |
| Control Panel | CS12MG (built-in) |
| Radio System | Dual Frequency 433.92 / 868.35 MHz |
| Security | AES-128 Encrypted |
| Unit Weight | 12.7 kg |
Smart Control & Programmable Functions
- Adjustable speed and thrust
- Soft Start / Soft Stop
- Automatic re-close timer
- Pre-flashing warning time
- Event & fault logging
- Firmware updates via Micro USB
- Master/Slave capability for paired gate systems
Built for Real-World Conditions
- Die-cast aluminium base for superior stability
- Sealed bronze gear motor
- Dust, moisture & insect-resistant internal layout
- UV-resistant ASA housing
- NIO anti-freeze system for cold climate performance
Perfect for high-quality residential and light commercial sliding gates, the NEOS 500 G delivers secure access, low power consumption, and professional performance in a compact, reliable system.
