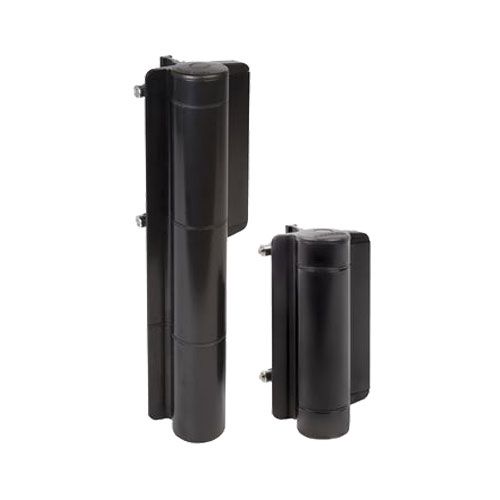

LOCINOX MAMMOTH180HD Hydraulic 180° Closer & Hinge 200kg
| Color: Black |
The Locinox Mammoth HD 180 Degree Hydraulic Swing Gate Closer and Hinge is a heavy-duty, hydraulically damped gate closer and hinge combination designed to automatically and smoothly close the heaviest gates without slamming. Engineered for maximum performance, this closer pairs seamlessly with the included self-closing Raptor hinge to handle gates up to 200 kg and 2000 mm wide.
Key Features & Highlights
- Heavy-Duty 2-in-1 Design: Functions as both a powerful gate closer and hinge, fit to close the heaviest gates securely, and includes the matching Raptor hinge.
- All-Weather Reliability: The built-in Active Thermal System guarantees a constant hydraulic closing speed, completely unaffected by weather conditions or temperature changes from -30°C to 70°C.
- Smooth Operation: Both hinges are equipped with high-quality double bearings, ensuring exceptionally smooth functioning during every open and close cycle.
- Fully Adjustable Control: Features customizable closing speed and final snap adjustability, alongside 20 mm of horizontal and vertical adjustability for precise installation.
- Extreme Durability: Made from robust powder-coated aluminium, rigorously tested for 500,000 cycles and 500 hours of salt spray exposure.
- Accessibility Compliant: Designed to meet ADA and PMR norms to provide controlled, low-resistance operation.
Technical Specifications
| Property | Specification |
| Available Finishes | Black |
| Max Gate Weight | 0 – 200 kg |
| Gate Width Range | 1100 mm – 2000 mm |
| Max Opening Angle | 180 Degrees |
| Closing Force | 32 Nm |
| Adjustability | 20 mm Horizontal, 20 mm Vertical, Left-Right |
| Speed & Final Snap Control | Yes (Adjustable) |
| Material Main Part(s) | Powder Coated Aluminium |
| Operating Temperature | -30°C to 70°C |
| Salt Spray Testing | 500 Hours |
| Tested Cycles | 500,000 |
| Norms Compliance | ADA / PMR |
Perfectly suited for residential, commercial, and industrial settings, this heavy-duty hydraulic gate closer ensures your gates close automatically and securely for enhanced security and maximum convenience.
