All necessary bolts and nuts for this fitting are included.

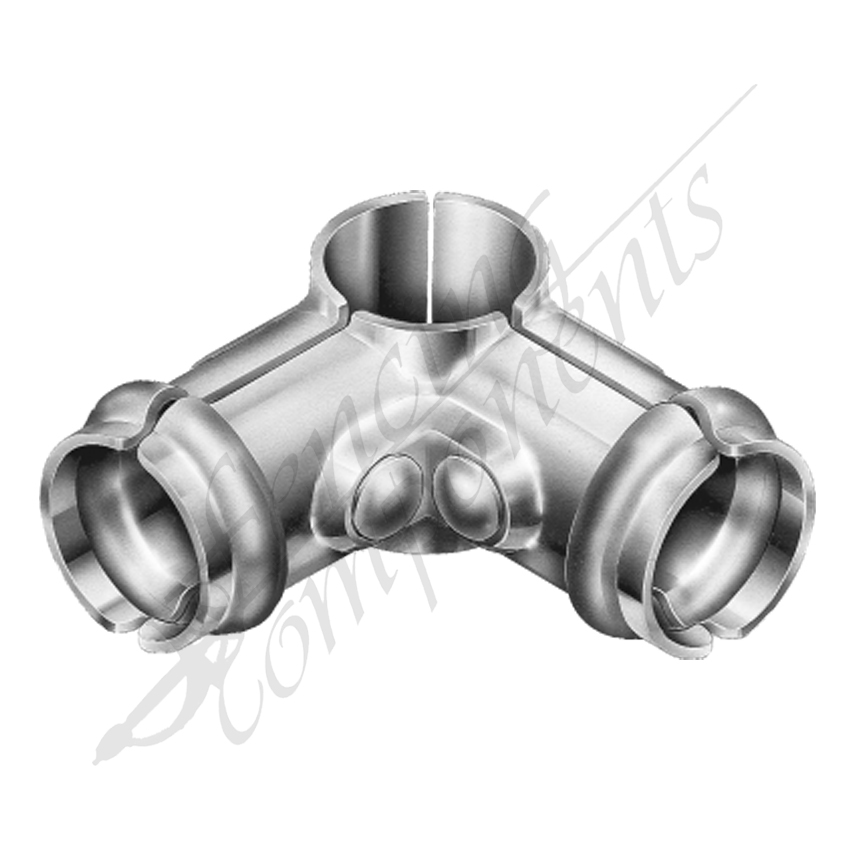

Chainwire Fixed 90-Degree Corner Joiner – Galvanized Steel Connector for Right-Angle Pipe Connections
The Chainwire Fixed 90-Degree Corner Joiner is an essential component in chainwire fencing systems, designed to create a strong and secure right-angle connection. This fitting enhances structural stability, making it ideal for security fencing, commercial enclosures, and industrial applications.
Application & Installation:

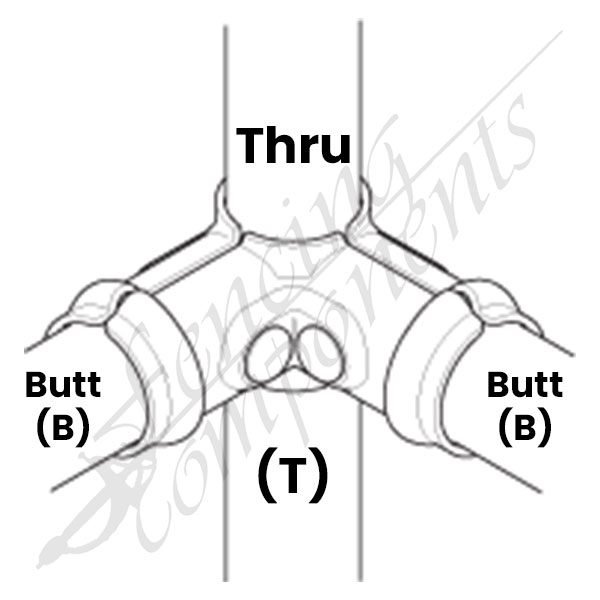

The Fixed 90-Degree Corner Joiner is used to connect horizontal and vertical fence posts at a fixed right angle, ensuring a rigid and stable framework. Installed at corner sections of chainwire fences, this joiner prevents pipe movement and maintains alignment for long-term durability. Manufactured from galvanized steel, it provides excellent resistance to corrosion and harsh weather conditions, making it suitable for both indoor and outdoor installations.
_______________
Disclaimer: All sizes listed for Chainwire, Round Pipe Fittings, and Pipes are in Nominal Bore (NB). Nominal Bore refers to the approximate internal diameter, which differs from the actual Outer Diameter (OD) measured in millimeters. Refer to the conversion table below for clarification.
| Nominal Bore (NB) | Outer Diameter (OD) mm |
|---|---|
| 15 NB (½") | 21.3 mm |
| 20 NB (¾") | 26.9 mm |
| 25 NB (1") | 33.7 mm |
| 32 NB (1¼") | 42.4 mm |
| 40 NB (1½") | 48.3 mm |
| 50 NB (2") | 60.3 mm |
| 65 NB (2½") | 76.1 mm |
| 80 NB (3") | 88.9 mm |
| 100 NB (4") | 114.3 mm |
| 125 NB (5") | 141.3 mm |
| 150 NB (6") | 168.3 mm |
| 200 NB (8") | 219.1 mm |
| 250 NB (10") | 273.0 mm |
| 300 NB (12") | 323.9 mm |
