All necessary bolts and nuts for this fitting are included.
Chainwire X-Joint Fitting – Galvanized Steel Connector for 4-Way Pipe Connections
The Chainwire X-Joint Fitting is a crucial component in chainwire fencing systems, designed to connect four intersecting pipes at a cross section. This fitting ensures structural integrity and load distribution, making it ideal for security fencing, commercial enclosures, and industrial applications.
Application & Installation:

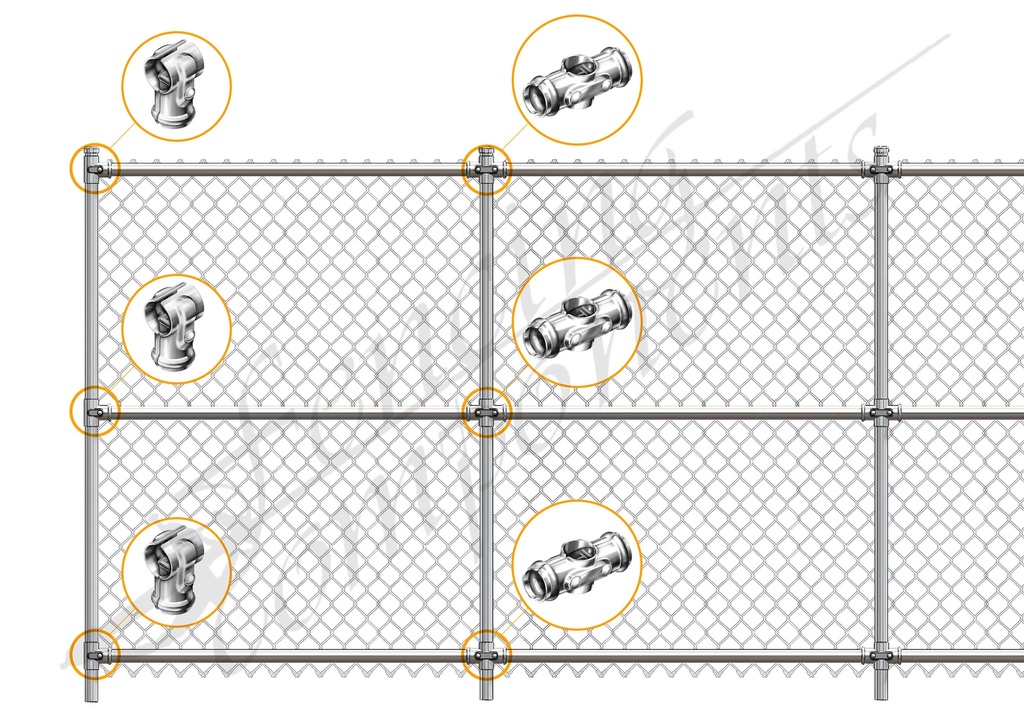

The X-Joint Fitting is used to join horizontal and vertical fence posts at a 4-way intersection, providing a firm and stable connection. Installed at key structural points, it prevents movement and misalignment of pipes, reinforcing the overall fence framework. Manufactured from galvanized steel, this fitting offers superior resistance to corrosion and harsh environmental conditions, ensuring long-term durability.
__________________
Disclaimer: All sizes listed for Chainwire, Round Pipe Fittings, and Pipes are in Nominal Bore (NB). Nominal Bore refers to the approximate internal diameter, which differs from the actual Outer Diameter (OD) measured in millimeters. Refer to the conversion table below for clarification.
| Nominal Bore (NB) | Outer Diameter (OD) mm |
|---|---|
| 15 NB (½") | 21.3 mm |
| 20 NB (¾") | 26.9 mm |
| 25 NB (1") | 33.7 mm |
| 32 NB (1¼") | 42.4 mm |
| 40 NB (1½") | 48.3 mm |
| 50 NB (2") | 60.3 mm |
| 65 NB (2½") | 76.1 mm |
| 80 NB (3") | 88.9 mm |
| 100 NB (4") | 114.3 mm |
| 125 NB (5") | 141.3 mm |
| 150 NB (6") | 168.3 mm |
| 200 NB (8") | 219.1 mm |
| 250 NB (10") | 273.0 mm |
| 300 NB (12") | 323.9 mm |
