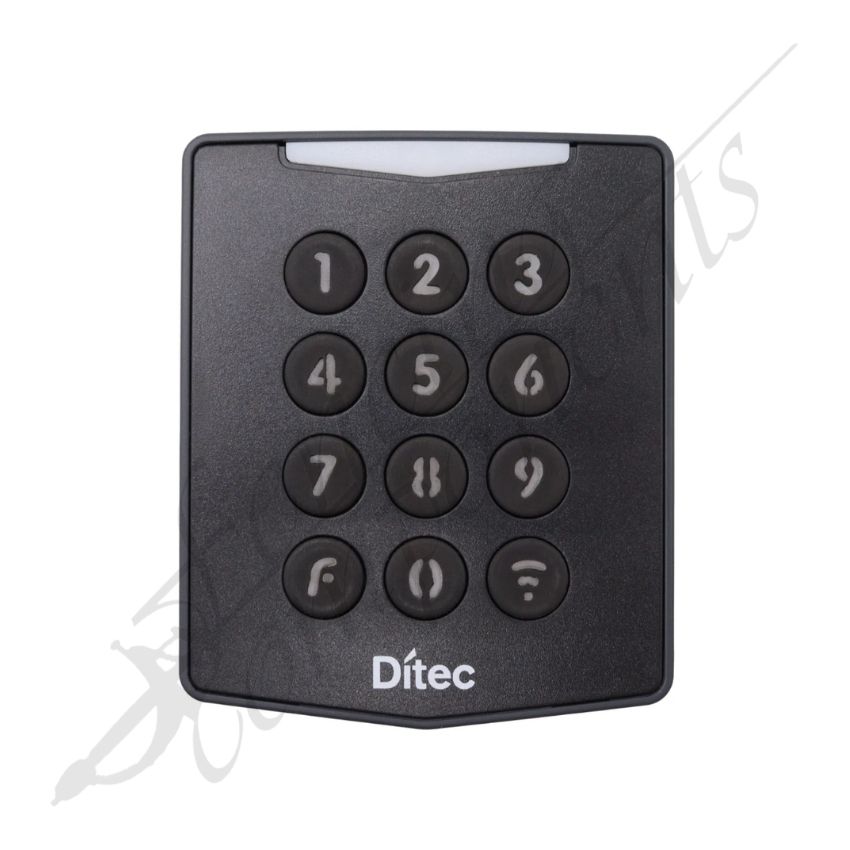

Ditec AXK4 Wireless Keypad (433.92 MHz) | Keyless Access Control
Upgrade your access control system with the Ditec AXK4 Wireless Keypad, a heavy-duty, weather-resistant digital keypad designed for secure, keyless entry. Capable of transmitting up to 150 meters in open field conditions, the AXK4 gives you reliable, wireless control over gates, garage doors, automatic barriers, and commercial entryways without the hassle of running power or control cables.
Key Features & Benefits
- Wireless & Battery Powered: Operates as a 433.92 MHz radio transmitter powered by a standard 9V battery (included), enabling clean and flexible installation anywhere near your entry point.
- 4-Channel Functionality: Program up to 4 separate channels/codes to control individual gates, garage doors, or specialized entry functions from a single keypad.
- Dual Power Flexibility: Designed for standalone wireless battery operation, with the option to hardwire to an external 12–24V AC/DC power supply if preferred.
- Weatherproof & Secure Enclosure: Built with a durable, impact-resistant outer casing designed to withstand tough weather conditions and outdoor environments.
- Backlit Keypad: Brightly illuminated keys ensure easy pin entry day or night.
- High Security: Prevents unauthorized access with secure signal transmission compatible with Ditec 433.92 MHz fixed-code and rolling-code receiver systems.
Technical Specifications
| Feature | Specification |
| Model | Ditec AXK4 |
| Operating Frequency | 433.92 MHz |
| Number of Channels | 4 channels |
| Power Supply | 9V DC Battery (or optional 12–24V AC/DC hardwired) |
| Wireless Range | Up to 150m (line-of-sight) / ~50m (typical outdoor environment) |
| Mounting Type | Surface mount |
| IP Rating | IP54 (Weatherproof outdoor rated) |
| Compatibility | Ditec gate automation systems and 433.92 MHz receivers |
Frequently Asked Questions
Do I need to run wires to install this keypad?
No. The Ditec AXK4 is a fully wireless keypad powered by an internal 9V battery. You can mount it directly to brick, timber, or metal posts without running any control wires.
Can I hardwire it to power if I don't want to change batteries?
Yes. The unit features built-in terminal blocks allowing you to connect it directly to an external 12–24V AC/DC power source.
How many gates or doors can I control with one keypad?
The AXK4 features 4 independent channels, allowing you to set up separate PIN codes to operate up to 4 different compatible gate or door receivers.
Is the keypad suitable for outdoor weather exposure?
Yes, the AXK4 features an IP54-rated weatherproof enclosure engineered to withstand rain, UV exposure, and dust.
What's Included in the Box:
- 1x Ditec AXK4 Digital Wireless Keypad
- 1x 9V Battery
- Mounting Hardware & Wall Plugs
- Step-by-Step Programming & Installation Guide
