Specifications

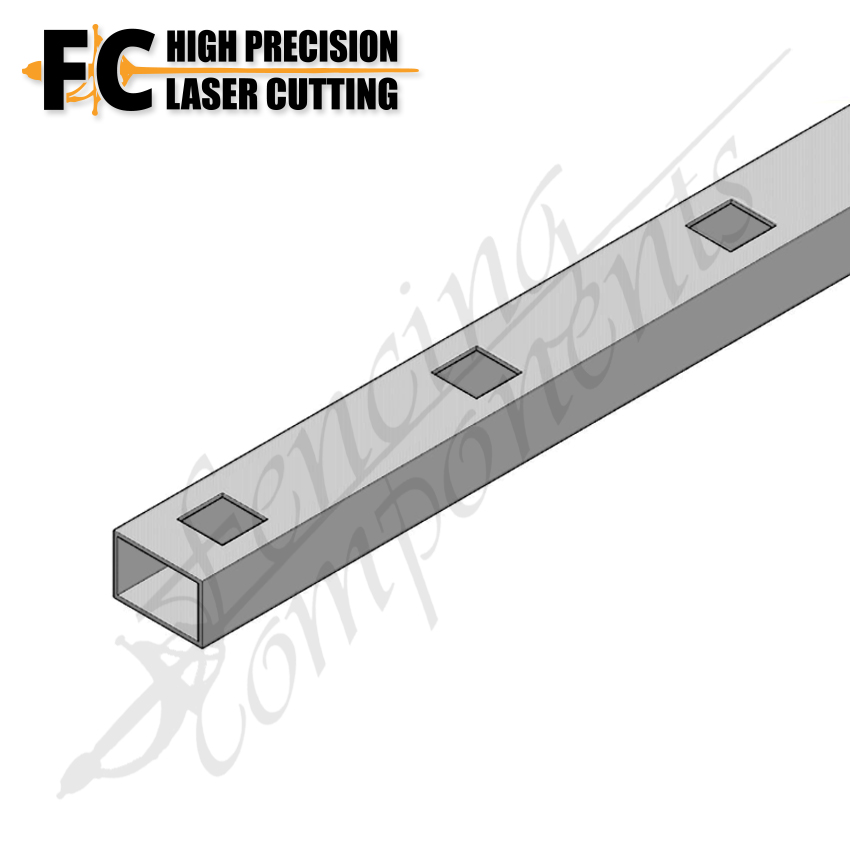

RHS Size : 50x25mm
SHS Length : 7800mm
SHS Thickness : 1.6mm
Hole to Suit : 25x25mm Square (Cut on 50 Side)
Centre Distance : 100mm Centres (75mm Gap)

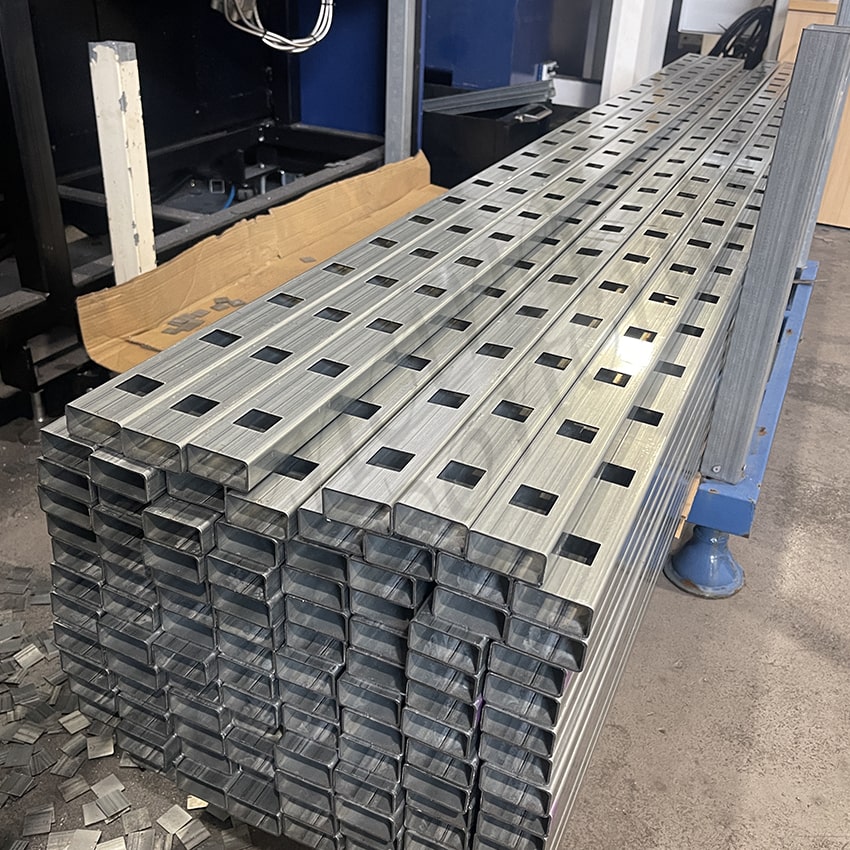

All LC/Laser Cut Rails use AS1163 C350L0-certified Galvanised SHS and RHS steel (350MPa min. yield) for superior strength, durability, and corrosion resistance. A 100g/m² min. zinc coating provides better protection than primer-painted alternatives, reducing cracking and fractures.
Need customised spacings or hole sizes? We offer high grade tubular laser cutting services - Find out more!
Specifications can be adjusted from SHS Size, Length, Thickness, Hole Cut Size & Centre Distance
Click to download Laser Cutting Quote Form PDF
