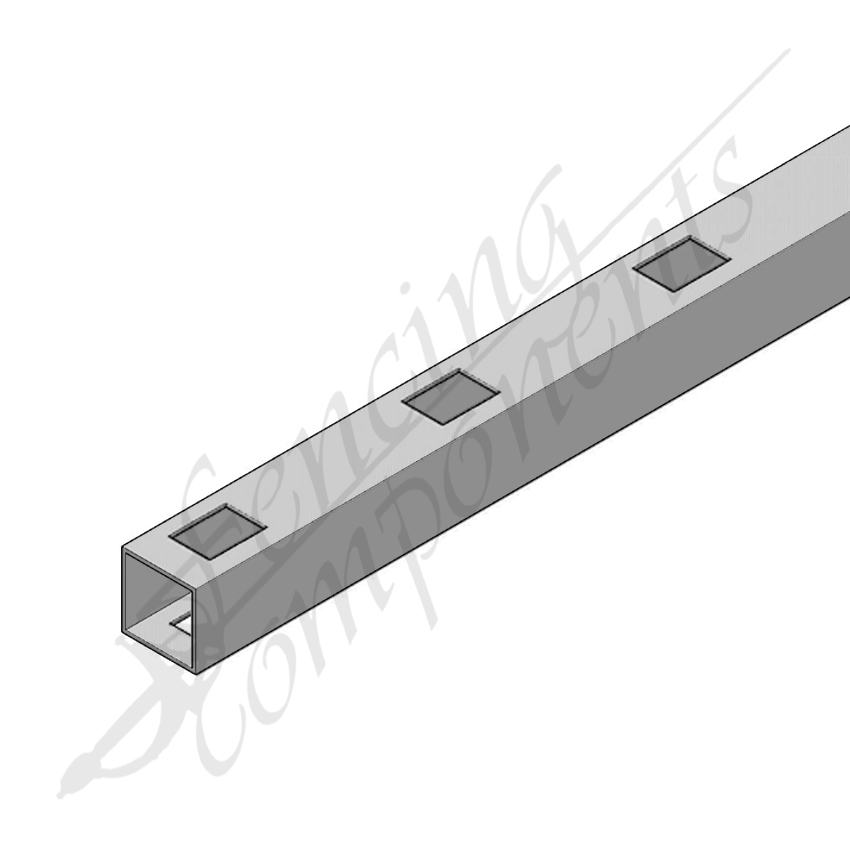

40x40mm Gal Punched Rail - 1.6mm (Raked Double 25x40)
Suitable up to ~19 Degrees
Specifications
RHS Size : 40x40mm
SHS Length : 2400/7800mm
SHS Thickness : 1.6mm
Hole to Suit : 40x25mm
Centre Distance : 115/135mm Centres (90,110mm Gap)
All LC/Laser Cut Rails use AS1163 C350L0-certified Galvanised SHS and RHS steel (350MPa min. yield) for superior strength, durability, and corrosion resistance. A 100g/m² min. zinc coating provides better protection than primer-painted alternatives, reducing cracking and fractures.
Need customised spacings or hole sizes? We offer high grade tubular laser cutting services - Find out more!
Specifications can be adjusted from SHS Size, Length, Thickness, Hole Cut Size & Centre Distance
Click to download Laser Cutting Quote Form PDF
