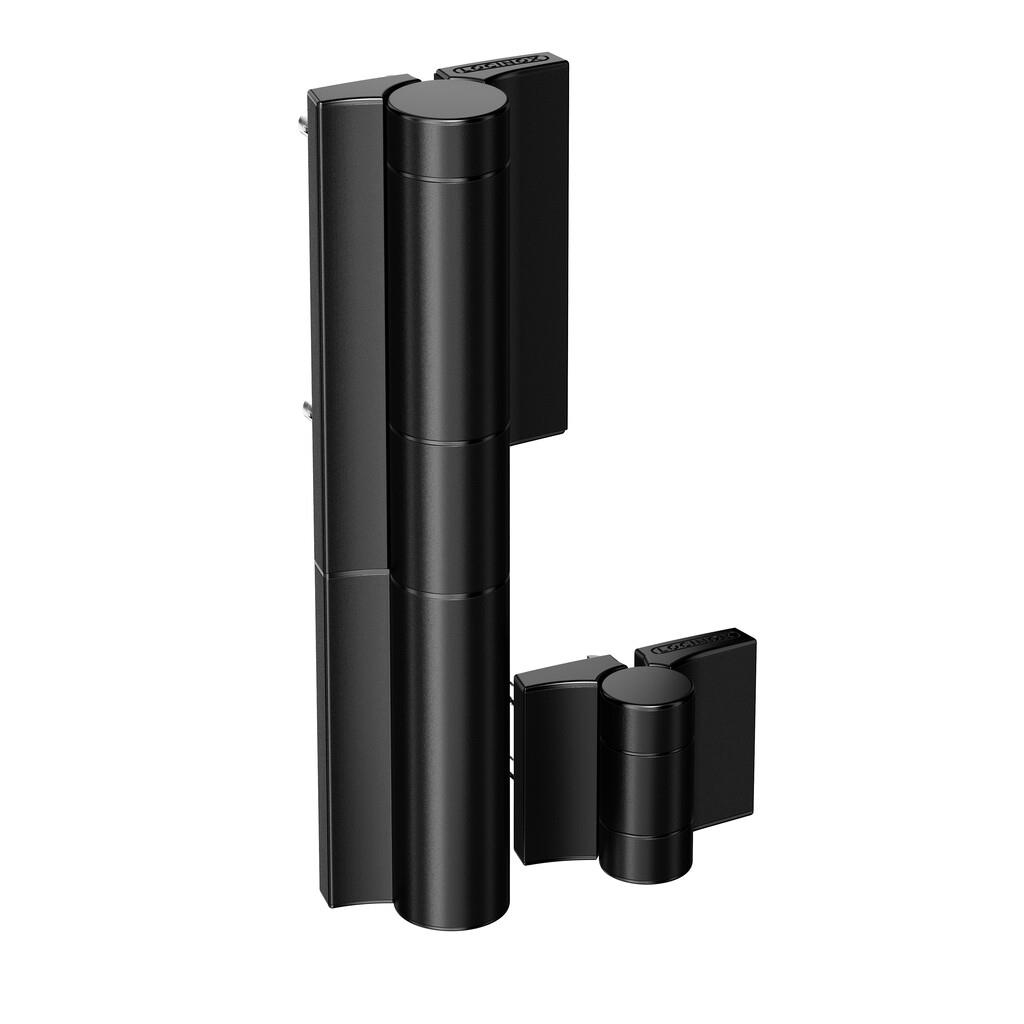

2nd Generation - LOCINOX MAMMOTH180-2 Hydraulic 180° Closer & Hinge 150kg
The Locinox MAMMOTH180-2 (Item No. P00017909) is a second-generation hydraulic 180° gate closer and hinge combination engineered for smooth self-closing on gates up to 150 kg and 1500 mm wide. Equipped with an Active Thermal System, it guarantees a constant closing speed regardless of temperature fluctuations between -30°C and 70°C.
Key Features & Highlights
- 2-in-1 Design: Functions as both a heavy-duty 180° gate hinge and a hydraulic gate closer, supplied with the matching Dino-2 hinge.
- All-Weather Reliability: Active Thermal System maintains consistent hydraulic closing speeds in extreme weather conditions ranging from -30°C to 70°C.
- Built to Last: Constructed from powder-coated aluminium with double bearings, tested for 500,000 operating cycles and 500 hours of salt spray exposure.
- Full Adjustability: Allows 20 mm of horizontal and vertical adjustment, along with fine-tuning for closing speed and final snap force.
- Quick-Fix Mounting: Simple, secure installation on both round and square gate profiles.
- Accessibility Compliant: Designed to meet ADA and PMR standards for smooth, low-resistance opening.
Technical Specifications
| Property | Specification |
| Model / SKU | MAMMOTH180-2 / P00017909 |
| Max Gate Weight | 150 kg |
| Gate Width Range | 900–1500 mm |
| Max Opening Angle | 180° |
| Closing Force | 16 Nm |
| Profile Compatibility | Round and Square profiles |
| Adjustability | 20 mm Horizontal, 20 mm Vertical, Speed & Final Snap |
| Operating Temperature | -30°C to 70°C |
| Salt Spray Testing | 500 Hours |
| Tested Cycles | 500,000 cycles |
| Norms & Compliance | ADA, PMR |
| Warranty | 3 Years |
Combining high-frequency performance with a clean, modern profile, this self-closing hydraulic hinge offers an ideal retrofit or new-build solution for commercial, industrial, and residential pedestrian gates.
